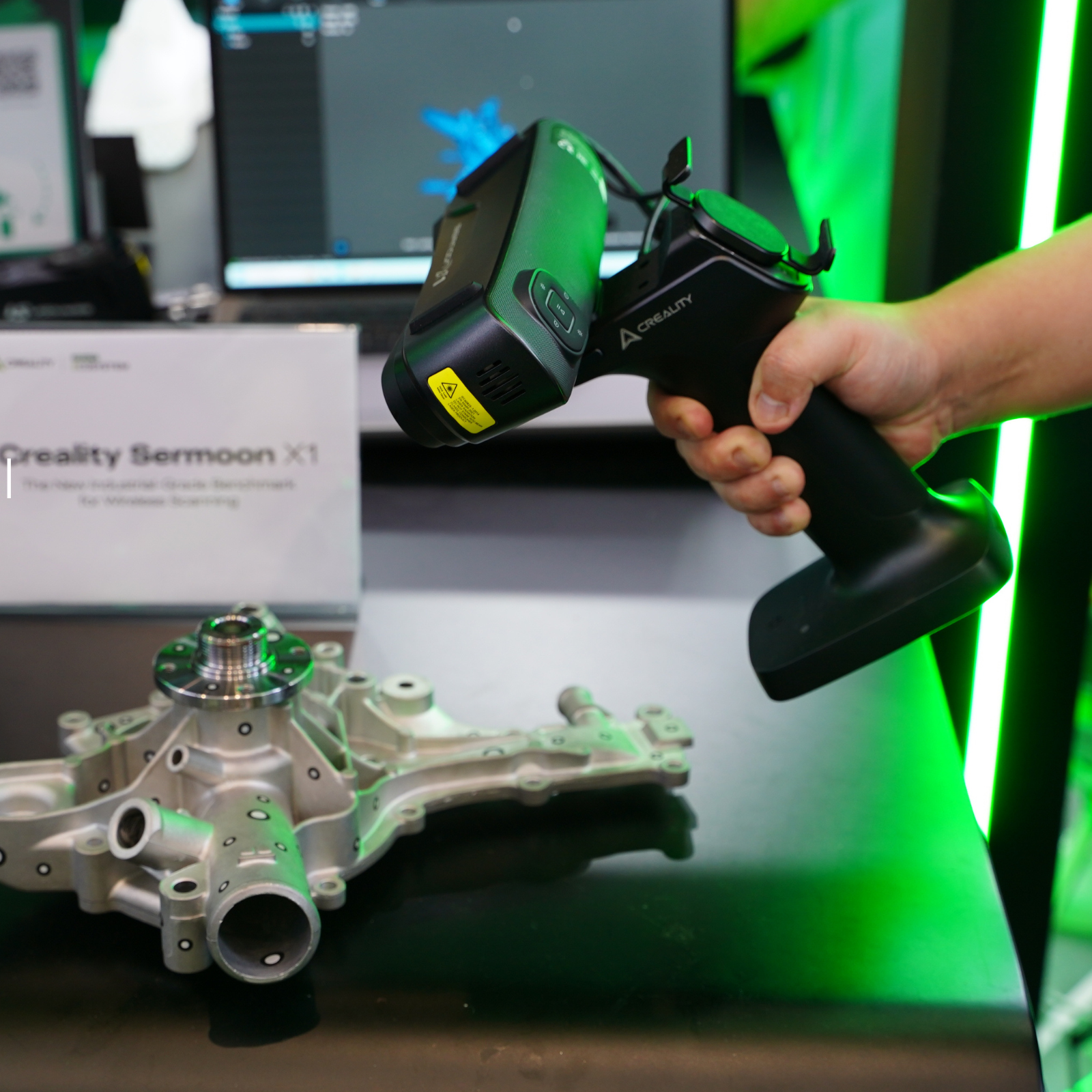

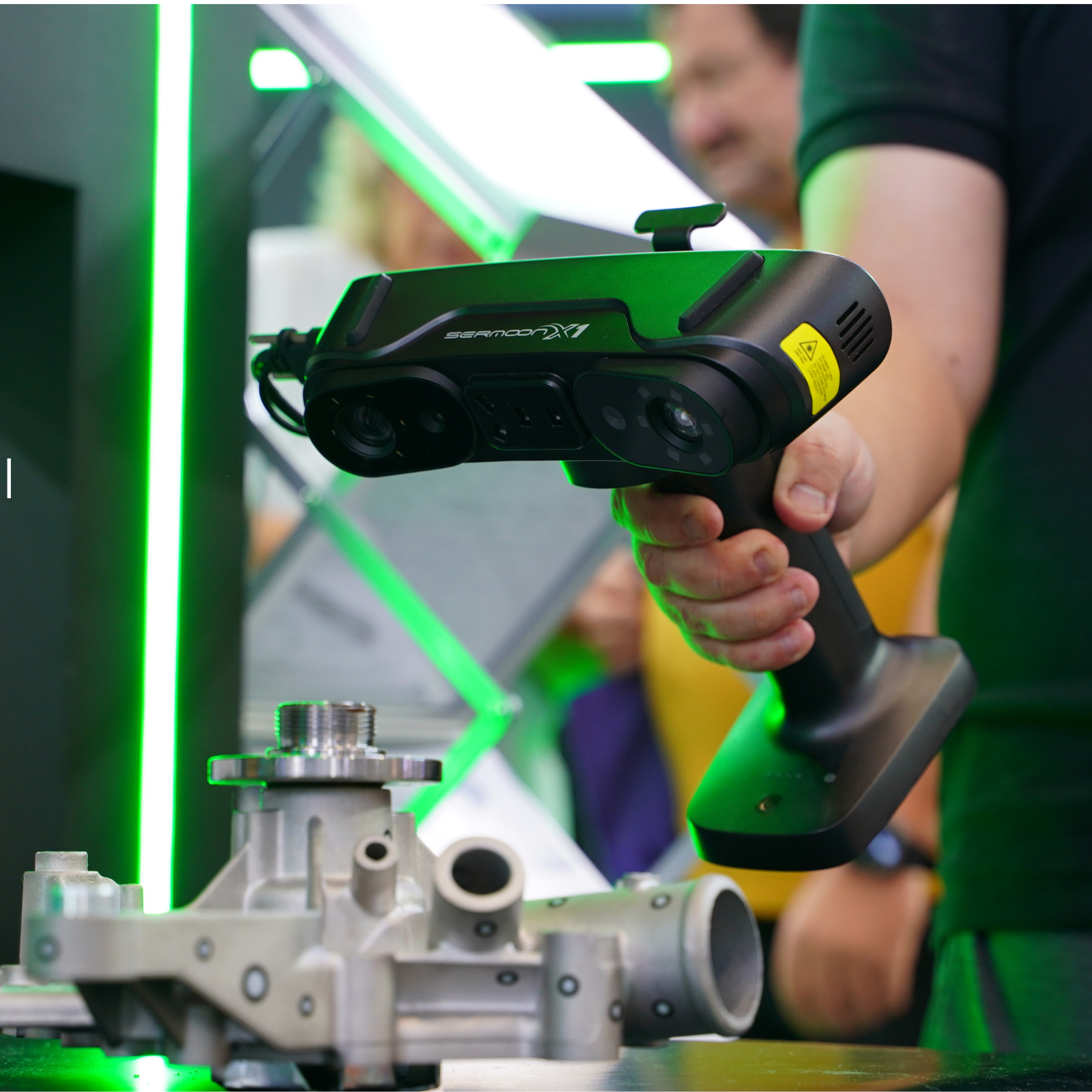

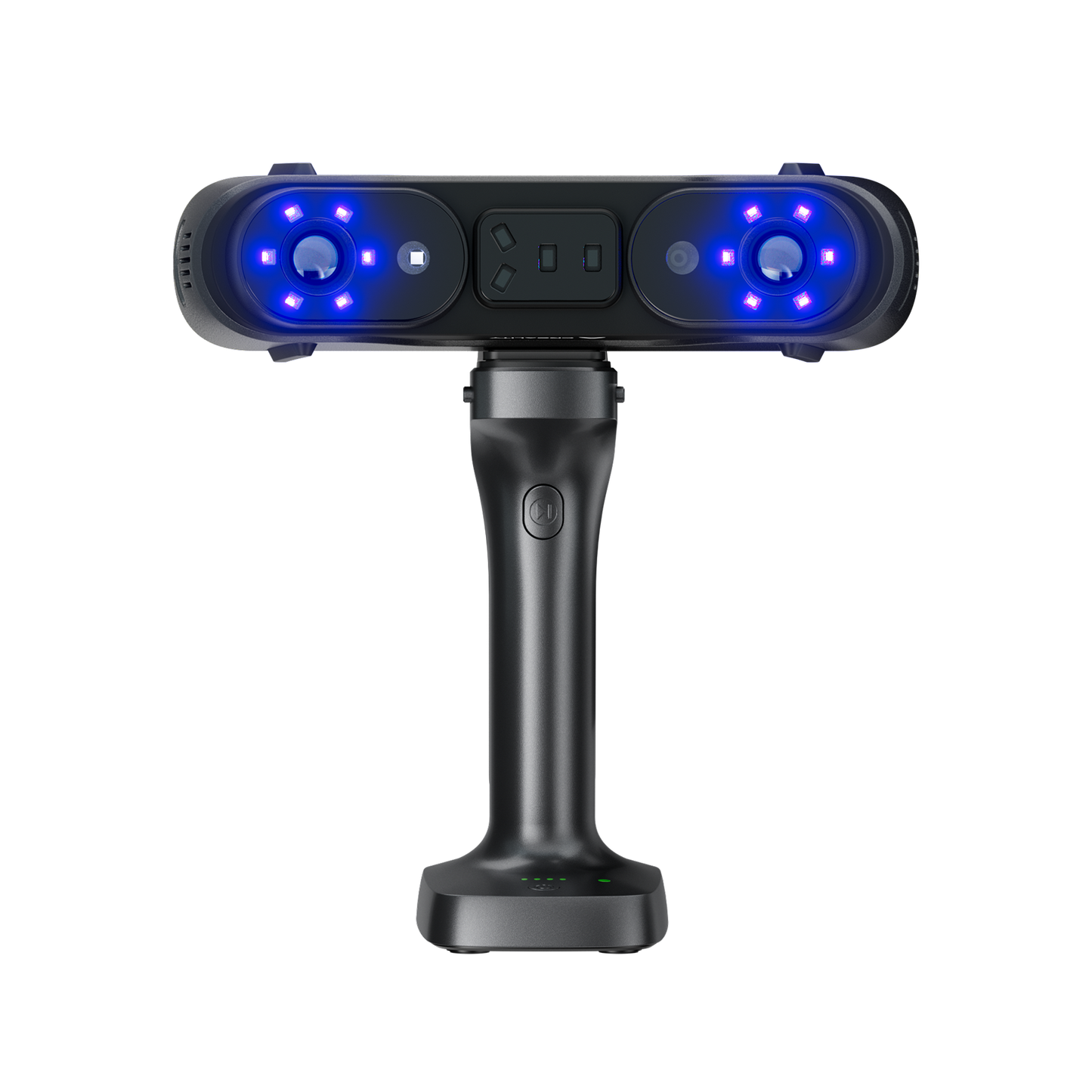

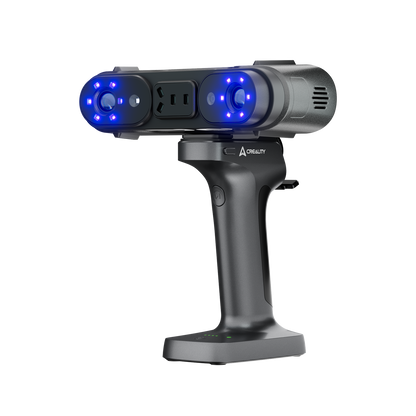

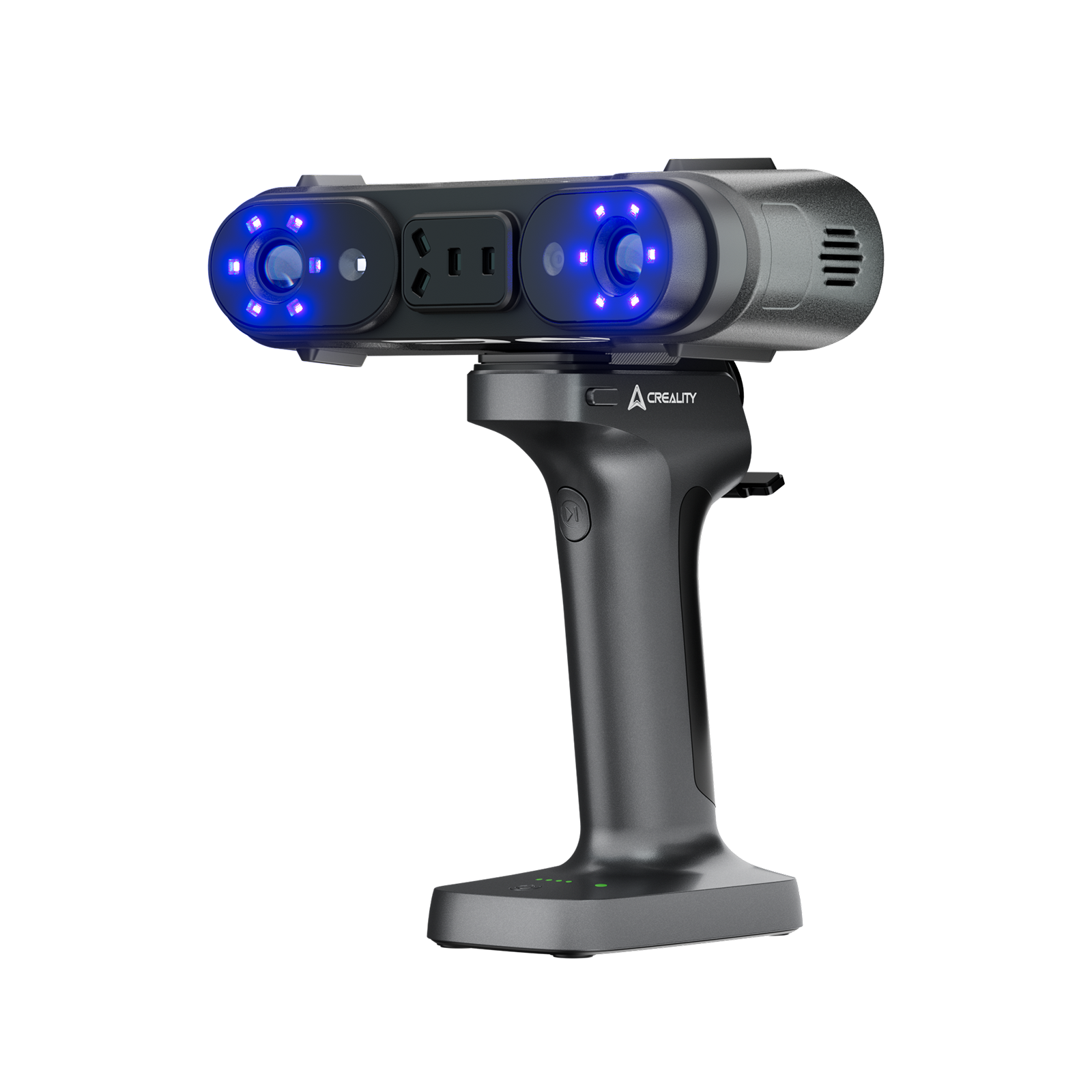

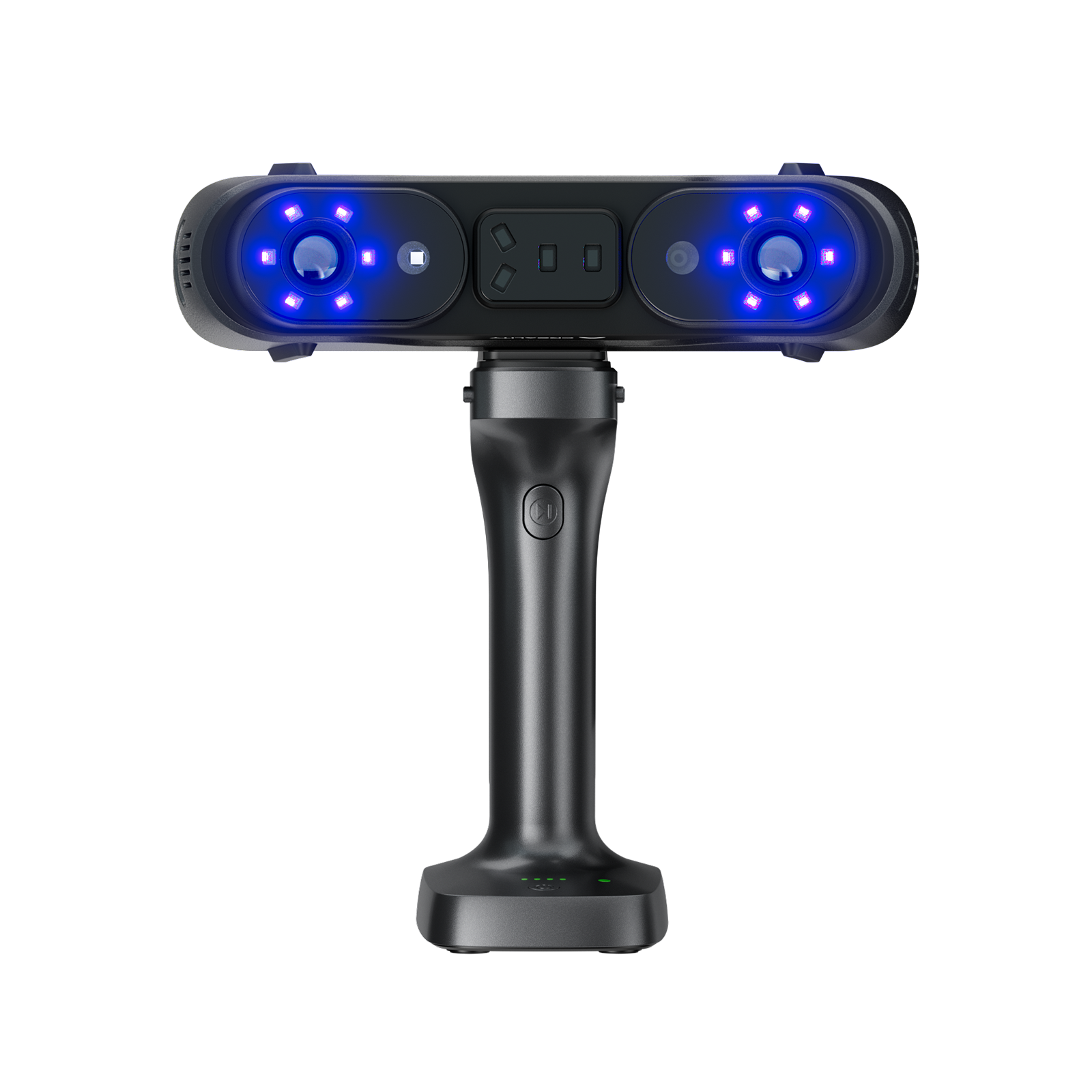

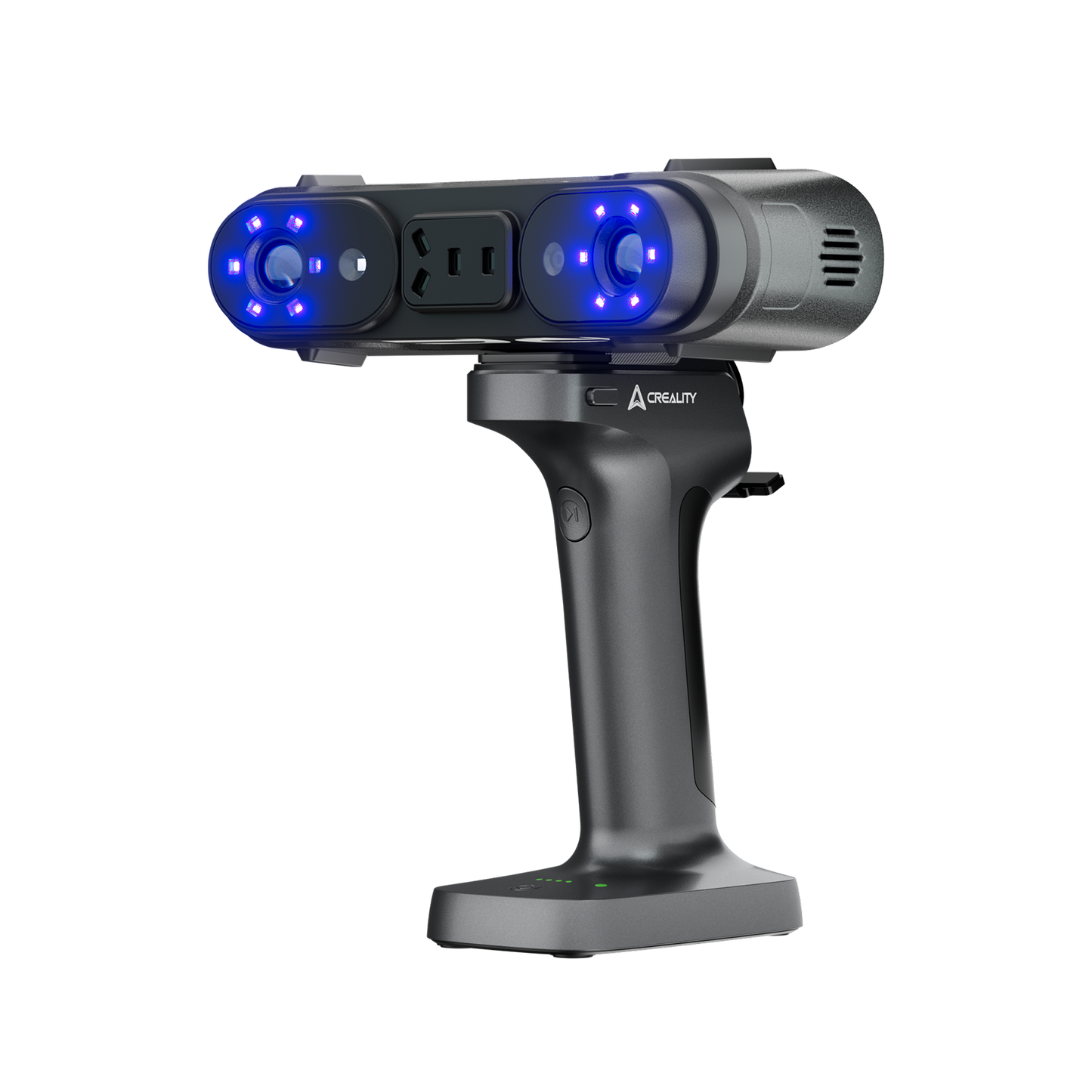

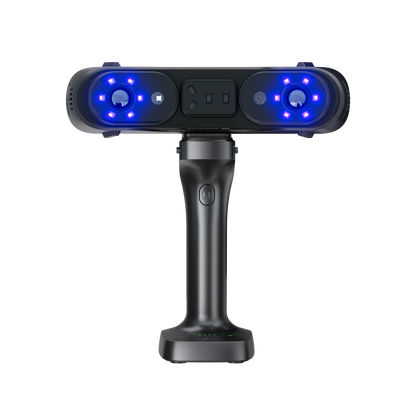

Creality Sermoon X1 — Industrial Wireless 3D Scanner
The Sermoon X1 is Creality's flagship professional wireless 3D scanner, engineered for industrial-grade accuracy and demanding workflows. Featuring a CNC-machined all-metal unibody construction and a 34+7+1 multi-line blue laser matrix combined with NIR structured light, the X1 delivers repeatable metrology-grade results from workshop to outdoor environments.
Built-in photogrammetry with dual scale bars enables volumetric accuracy down to 0.02mm + 0.03mm/m — suitable for engineering inspection, reverse engineering, automotive customisation, and heritage digitisation.
Key Features
- 34+7+1 Multi-Line Blue Laser: 34 cross-lines for fast large-part scanning, 7 parallel lines for fine detail, and single-line mode for deep holes (depth-to-diameter ratio up to 6:1)
- NIR Structured Light: Fast, marker-free scanning of large objects and the human body
- 0.02mm + 0.04mm/m Accuracy (0.02mm + 0.03mm/m with scale bars)
- Built-in Photogrammetry: 2× scale bars included; automatically corrects dimensional accuracy during reconstruction
- Wireless Operation: Wi-Fi 6 for cable-free scanning; 5000mAh battery for 4+ hours runtime
- CNC All-Metal Unibody: Optoelectronic mount and lens holder machined from aerospace-grade aluminium for lasting rigidity
- Large FOV: Line laser up to 650×531mm; Infrared up to 1300×935mm — 17% fewer markers per scan
- Wide Scanning Range: 5×5×5mm up to 4000×4000×4000mm³
- Full-Colour Texture: Qualcomm ISP chip + 2MP RGB camera with auxiliary lighting
- No Spray Required: Scans black and metallic surfaces without preparation
- Up to 90 FPS: Parallel and single-line modes; 85 FPS cross-line; 30 FPS infrared
- ScanBridge Compatible: Wireless bridge for extended PC connectivity
- AI Temperature Compensation: Stable output during extended scanning sessions
Technical Specifications
| Accuracy | 0.02mm + 0.04mm/m (0.02mm + 0.03mm/m with scale bar) |
| Scanning Speed | Up to 90 FPS (line laser); 30 FPS (infrared) |
| Laser Lines | 34 cross + 7 parallel + 1 single (blue laser) |
| Light Source | Blue laser + NIR structured light |
| Scanning Range | 5×5×5mm to 4000×4000×4000mm³ |
| Max FOV (Line Laser) | 650 × 531mm |
| Max FOV (Infrared) | 1300 × 935mm |
| Connectivity | Wi-Fi 6, USB 3.0 |
| Battery | 5000mAh, 4h+ runtime |
| Camera | 2MP full-colour RGB |
| Deep Hole Scanning | Up to 6:1 depth-to-diameter ratio |
In the Box
Sermoon X1 scanner, 2× scale bars, glass calibration board, carry case, battery, USB-C cable, power supply, reflective marker dots.
