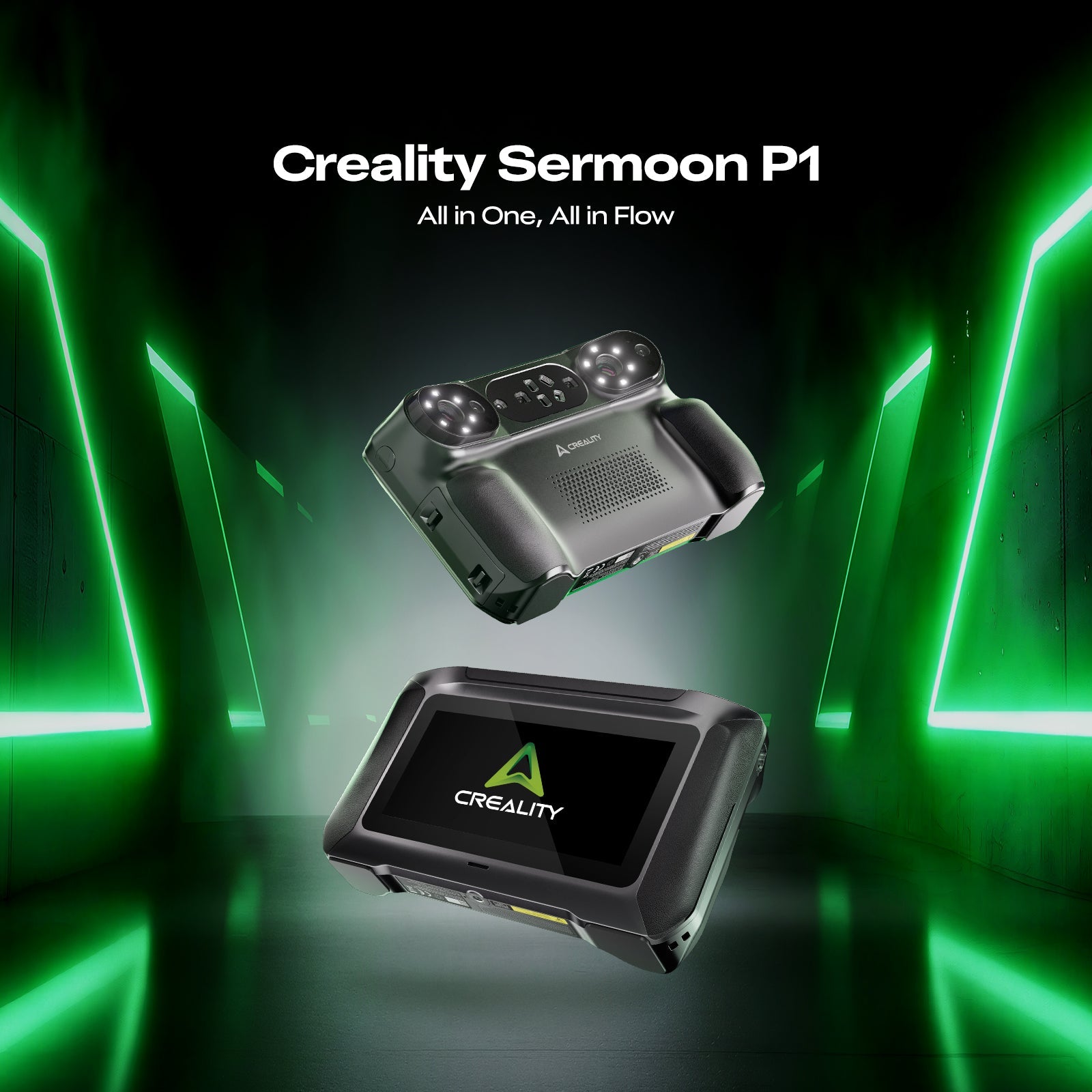

Creality Sermoon P1 — Professional All-in-One 3D Scanner

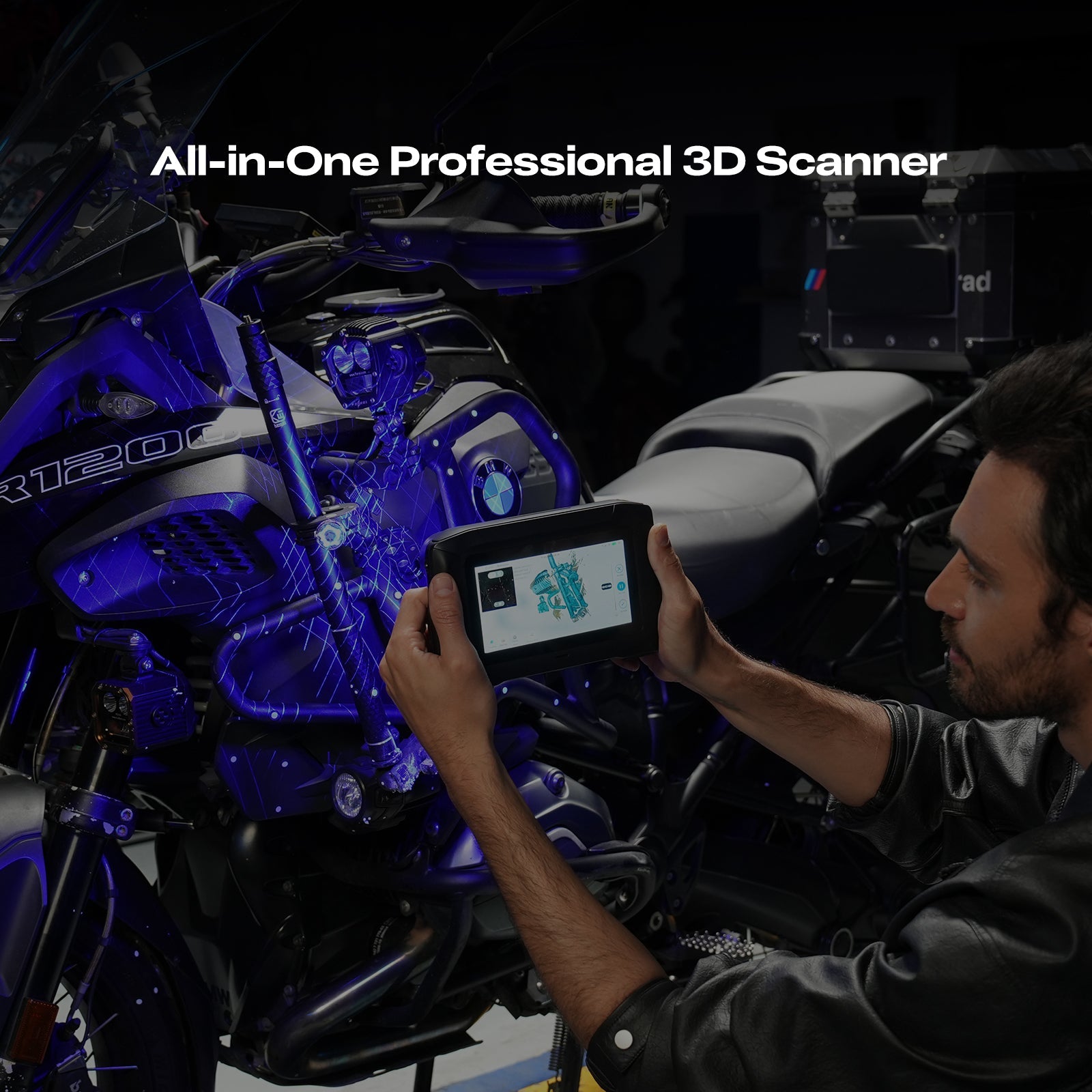

The Sermoon P1 is a true standalone professional 3D scanner built for engineers, automotive workshops, industrial inspection teams, and professional studios. Combining advanced multi-mode blue laser scanning with NIR structured light, the P1 delivers industrial-grade accuracy without the complexity of traditional scanning setups.
Powered by a Qualcomm 8-core processor, 24GB RAM, and 256GB onboard storage, the Sermoon P1 operates entirely standalone — no laptop or external computer required. A 6-inch touchscreen provides a full on-device workflow from capture through to mesh export.
Key Features
- Triple Scanning Modes: Standalone, Wired PC, and Wireless PC — adapt to any environment or workflow

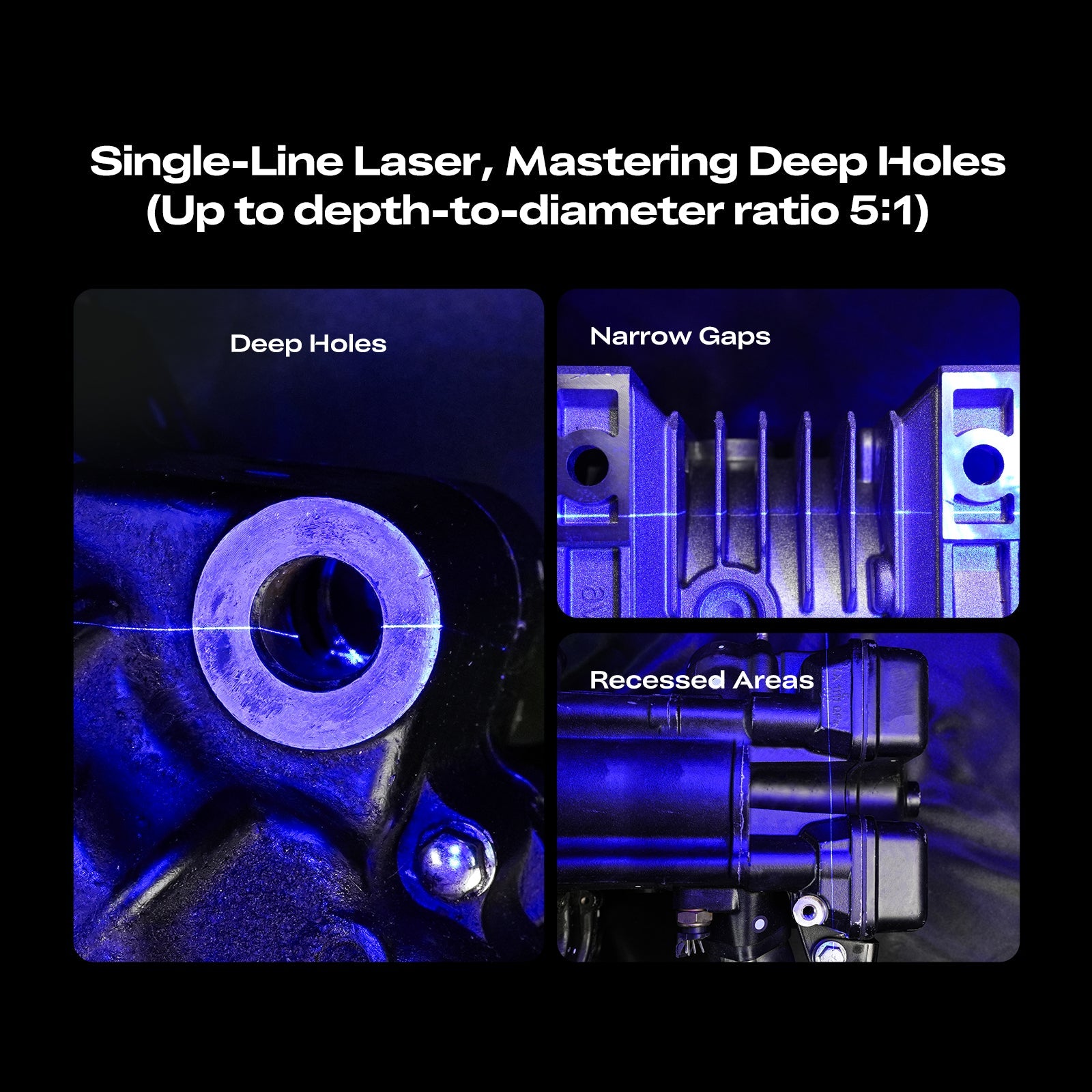

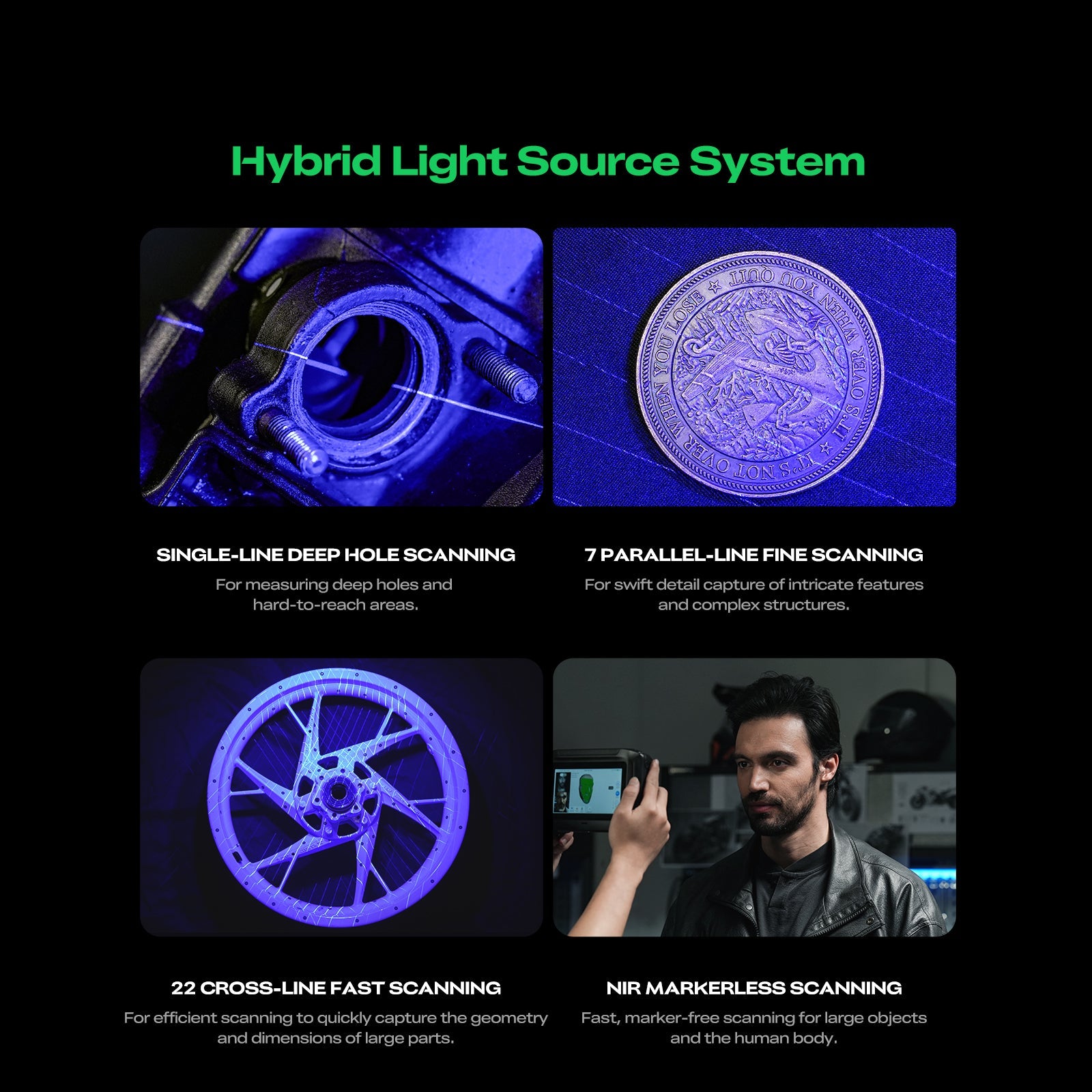

- 22+7+1 Multi-Line Blue Laser Matrix: 22 cross-lines for large-part scanning, 7 parallel lines for fine detail, and single-line mode for deep holes (depth-to-diameter ratio up to 5:1)

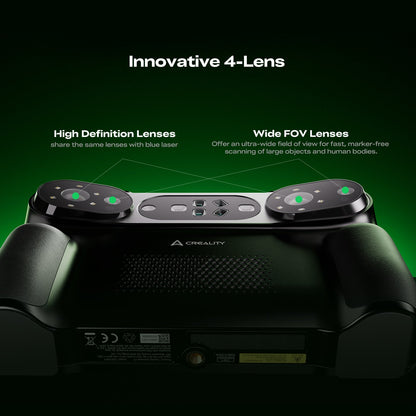

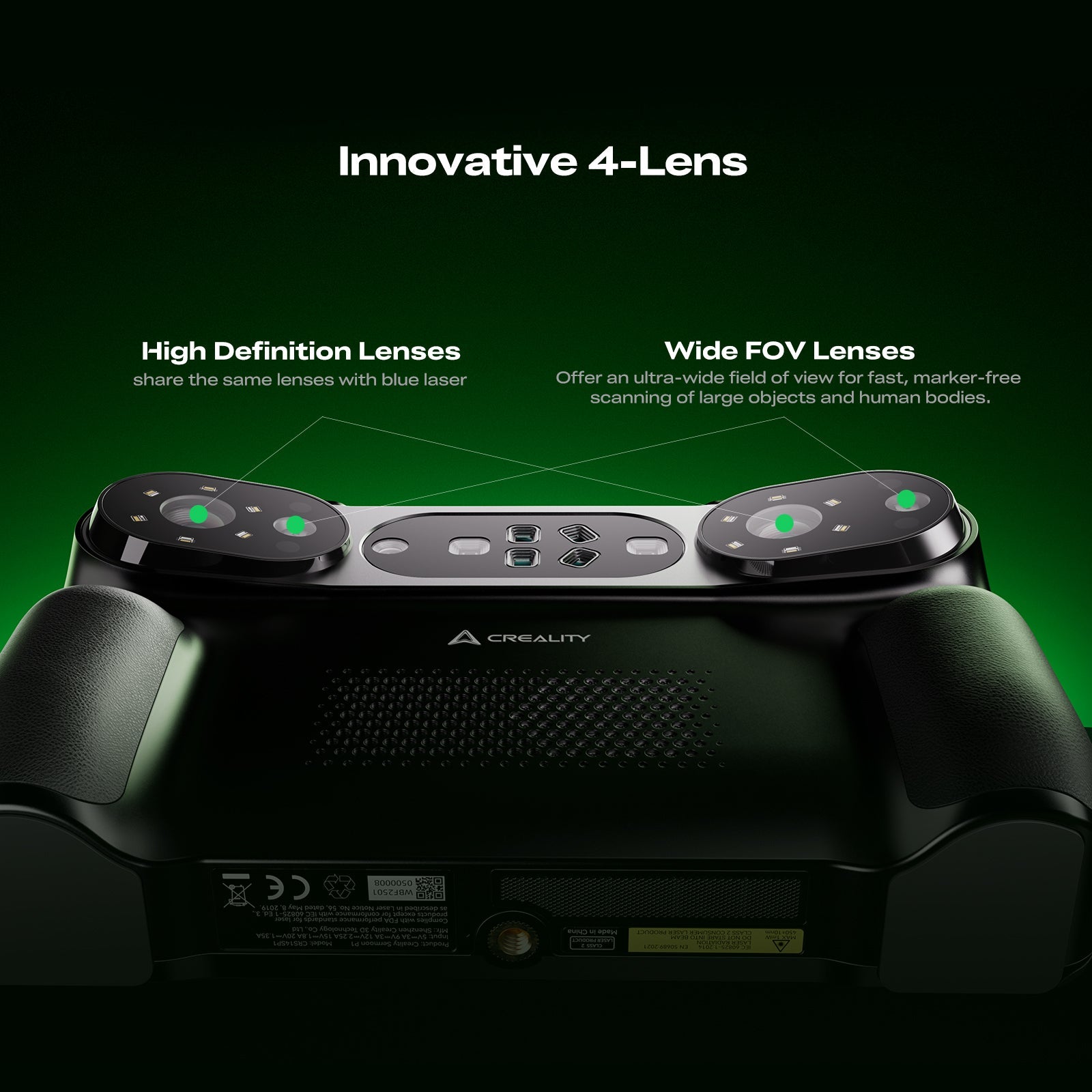

- NIR Structured Light: Dual NIR VCSEL for fast, marker-free scanning of large objects and the human body

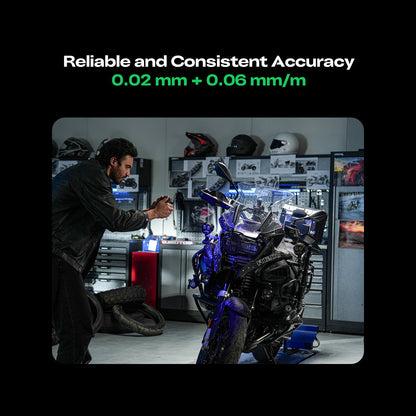

- 0.02mm + 0.06mm/m Accuracy: Volumetric accuracy suitable for reverse engineering, inspection, and quality control
- Wide Scanning Range: From 5×5×5mm up to 4000×4000×4000mm³ in a single device
- Full-Colour Texture Capture: Qualcomm ISP chip + RGB camera with auxiliary lighting for realistic texture output
- No Spray Required: Scans black and metallic surfaces without preparation sprays

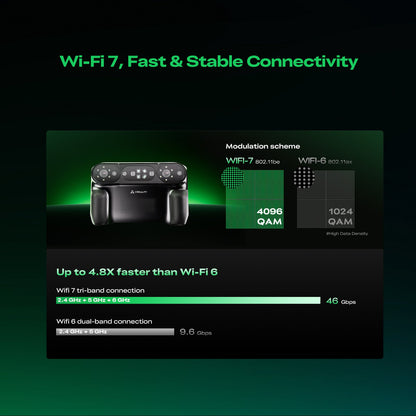

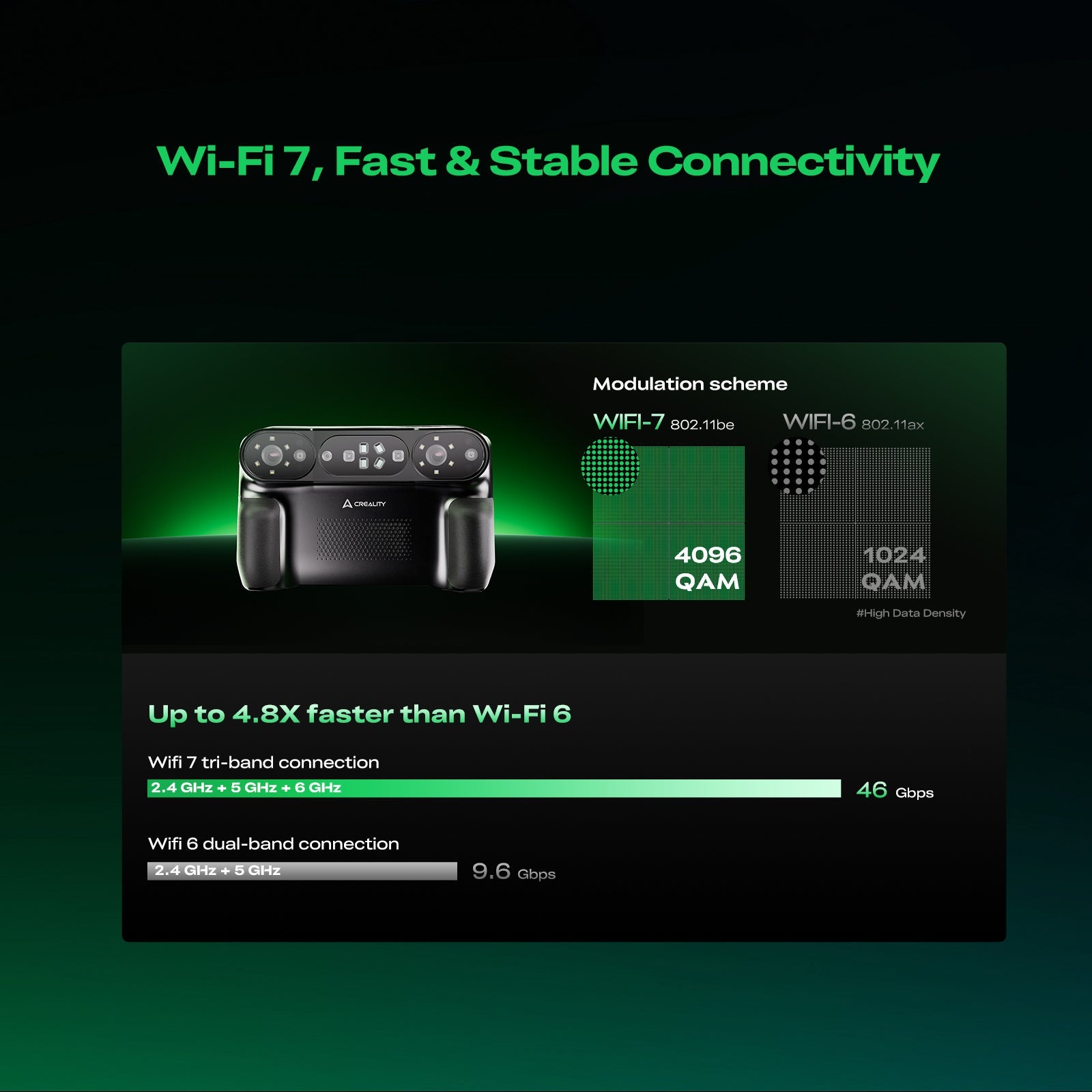

- Wi-Fi 7 Connectivity: Ultra-fast, low-latency data transfer to PC when required
- AI Temperature Compensation: Maintains stable, consistent output during extended scanning sessions
- Up to 100 FPS Scanning Speed: High-speed capture for efficient professional workflows
- Fast Charging: 80% charge in 50 minutes; includes spare battery for uninterrupted field operation
Onboard Software
The integrated CrealityScan software handles calibration, scanning, point cloud fusion, mesh generation, and editing entirely on-device. Scan data exports seamlessly to mainstream reverse engineering and inspection platforms including QuickSurface and Geomagic Design X.
In the Box
- Sermoon P1 3D Scanner
- Glass calibration board
- Spare battery pack
- USB-C cable
- Power supply
- Reflective marker dots
- Carry case
- Cleaning cloth
Technical Specifications
| Accuracy | 0.02mm + 0.06mm/m (volumetric) |
| Scanning Speed | Up to 100 FPS |
| Laser Lines | 22 cross + 7 parallel + 1 single (blue laser) |
| Light Source | Blue laser + Dual NIR VCSEL structured light |
| Scanning Range | 5×5×5mm to 4000×4000×4000mm³ |
| Processor | Qualcomm 8-core, Adreno 740 GPU, 48 TOPS DSP |
| RAM / Storage | 24GB RAM / 256GB |
| Display | 6-inch touchscreen |
| Connectivity | Wi-Fi 7, USB 3.0 |
| Weight | 830g |
| NIR Accuracy | ~0.075mm |
